ESXi on KVMを実装していきたい
Introduction - ESXi on KVMを実装していきたい
あけましておめでとうございます!ひさびさすぎる更新となりました...
2020年の後半はいろいろ資格を取っていたり、技術的な部分のインプットに時間を充ててました...
(それ以外だとiPad Airを 買ったり、キーボードが届いてテンションが上がったり...)
とまぁ、私事になりますが現在業務でVMwareを扱う機会が多く、今月中にもVCPを取得する予定でもあります。
できれば、身近な環境でVMwareのvShpereを実装してみたいと思いました。
ですので、今回は普段遣いしているLinux環境のKVM上でESXiを動かしたい!という試みです。
結論から申し上げますと、実装はできたけど「まだまだ試す部分が多い」という所感です。
この部分は今後の記事のネタにできればと思います。
Environment - 実装環境
#OSとカーネル $ uname -a Linux Arch-Machine 5.9.14-zen1-1-zen #1 ZEN SMP PREEMPT Sat, 12 Dec 2020 14:36:44 +0000 x86_64 GNU/Linux #実装するマシンのホスト名 $ uname -n Arch-Machine #ハードウェア $ lscpu | grep "Architecture\|Thread(s) per core\|Core(s) per socket\|Model name\|Frequency boost\|CPU MHz" Architecture: x86_64 Thread(s) per core: 2 Core(s) per socket: 6 Model name: AMD Ryzen 5 3600 6-Core Processor Frequency boost: enabled CPU MHz: 2317.892 $ free total used free shared buff/cache available Mem: 32873960 1634276 29700216 410256 1539468 30441708 Swap: 33554428 0 33554428 $ lsblk | grep nvme nvme0n1 259:0 0 465.8G 0 disk ├─nvme0n1p1 259:1 0 512M 0 part /boot ├─nvme0n1p2 259:2 0 32G 0 part [SWAP] ├─nvme0n1p3 259:3 0 64G 0 part / └─nvme0n1p4 259:4 0 369.3G 0 part /home #ネットワーク周り $ ip a 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever 2: enp4s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000 link/ether 50:3e:aa:14:33:c1 brd ff:ff:ff:ff:ff:ff inet 192.168.10.22/24 brd 192.168.10.255 scope global dynamic noprefixroute enp4s0 valid_lft 34242sec preferred_lft 28842sec inet6 fe80::e894:cfe7:c06f:33e5/64 scope link valid_lft forever preferred_lft forever 3: enp5s0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc fq_codel state DOWN group default qlen 1000 link/ether a8:a1:59:16:44:03 brd ff:ff:ff:ff:ff:ff 4: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000 link/ether 52:54:00:d3:55:88 brd ff:ff:ff:ff:ff:ff inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0 valid_lft forever preferred_lft forever 5: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN group default qlen 1000 link/ether 52:54:00:d3:55:88 brd ff:ff:ff:ff:ff:ff
Concept - 構想
+Arch Machine----------------+-------+----------+ |(192.168.10.22) |enp4s0 | | | +--+----+ | | | | | +----------------------------+--+---------+ | | | | | | | | +virbr0 ----------+--+ | | | | |(192.168.122.1) | | | | | +---------+----------+ | | | | | | | | | +-ESXi Host------+---------------+ | | | | | (192.168.122.252(DHCP)) | | | | | +--------------------------------+ | | | | | | | +Virtual Network--------------------------+ | | (192.168.122.0/24) | +-----------------------------------------------+
上の図のように、ホストマシン(Arch-Machine)の中にLinuxの標準スイッチを設定して、
その下に、VMとしてESXiホストを実装しております。
実装環境にて、NICが複数ありますが、実はマシンを新調したばかりでしてNICを遊ばせてしまっています..
今回はenp4s0のみが登場します。
Preparation - 前準備
まずは、自分の環境でKVNによる仮想化を実行できるかを調査しましょう。
$ LC_ALL=C lscpu | grep Virtualization
または、
$ grep -E --color=auto 'vmx|svm|0xc0f' /proc/cpuinfo
各々、環境にもよりますが下記のように、仮想化を行える旨で回答が来ればヨシっ!
$ LC_ALL=C lscpu | grep Virtualization Virtualization: AMD-V #AMDなら"AMD-V",Intelなら"VT-x" $ grep -E --color=auto 'vmx|svm|0xc0f' /proc/cpuinfo #AMDなら"svm" Intelなら"vmx"が出力されます。 #今回は長いので省略
次に、必要なパッケージのインストール
$ pacman -S qemu virt-manager #qemu -> KVMで仮想マシンを動かす上でハードウェアをエミュレートしてくれる #virt-manager -> KVMのGUIフロントエンド(Linuxのデスクトップ環境なので便利)
ESXiでVMを起動するための設定、いわゆる「VM on VM」を実現する設定もここで、
$ vim /etc/modprobe.d/kvm.conf options kvm_amd nested=1 #options kvm_intel nested=1 ---> intelならこっち #↑今回はAMDなので...
機能が有効になっているかを確認。
$ systool -m kvm_amd -v | grep nested #intelなら"systool -m kvm_intel -v | grep nested" nested = "1" #nested = "Y"でもOK
Run - 実行
実際に動かす際は、ESXiのインストールファイルを公式から持ってきて、"virt-install"を下記のように実行。
※あくまで、一例です。
$ virt-install \ --name esxi70 \ --ram 8000 \ --disk path=/var/lib/libvirt/images/esxi70.img,size=20,bus=sata \ --cpu host-passthrough \ --vcpus=4 \ --os-type linux \ --os-variant=virtio26 \ --network bridge=virbr0,model=e1000e \ --graphics spice,listen=0.0.0.0,password=password \ --video qxl \ --cdrom /var/lib/libvirt/images/VMware-VMvisor-Installer-7.0b-16324942.x86_64.iso \ --features kvm_hidden=on \ --machine q35
NICの問題で、"e1000"で実行していましたが、それではESXiのインストール画面でひたすらエラーが出るので、
"e1000e"に変更!、同じintel-NICなのになぜ...?
root以外のユーザが実行するか否かの設定等もありましたが今回は割愛。
Result - 結果
できたわね!
After Word
以上です!
今回は、そりゃそうだみたいな感じの実装でしたが、これをもう少しNW周りをゴリゴリにして、
ESXi on KVMでガチLAB環境を作りたいものです。
APIとかも作るかも...
それでは、サラダバー!!
Reference - 参考
minecraftサーバの実装を自動化しちゃいたい♡
Introduction - 自動化をしちゃいたい
お疲れ様です。皆様、最近のバズワード「自動化」をご存知でしょうか?
まぁ、自動化と言っても自分は特にIaC(Infrastructure as Code)というものに興味津々でございます。これでもインフラエンジニアの端くれらしいので...
で、話は少し逸れて先週ふと...「マイクラしてぇぇぇ(ゲスボイス)」と思い立ったのです。
マイクラを普通にインストールして遊ぶのもすごく楽しいですが、せっかくだしAWS上にインスタンスを用意して、マイクラサーバをデプロイして、みんなで遊んじゃいたいということです。
今回は、それをインフラ周りの構築からマイクラサーバのデプロイ、起動までを自動化してみたら勉強にもなるかしらと思い、キーボードを叩くことにしました。
まぁ、自動化ツールは自分の野望にも必要になってくるものではあるので、少しずつ慣れていければと思います。(まぁ、自動化ツールはあくまでツールであって、「構築・運用における銀の弾丸になりうる」とまでは思っていないというのが私の考えではありますが...)
環境のご説明
前置きが長くなりましたね...
環境のご説明をいたします。
- 環境
コードのご紹介
書いたものについて
書いたコードはここに置いておきます。
利用方法とかは、ちゃんと README書くので許して...
で、今回は主に初めて利用するAnsibleのコードについてご紹介していきたいと思います。
Ansibleについては、Google先生に聞くか、某大佐の本を購入するか、モクモクの会に出てみるか、調べる方法はいくらでもあるので、割愛。
少し言うなら、エンジニアの皆さんがここ数年、生暖かい目線を送って盛り上げてる自動化ツールかなというのが自分の中での印象です。
んで、最初にファイルのツリーをご開帳。
- ファイルのツリー
. ├── build_infra.yml ├── build_minecraft.yml ├── inventory │ ├── aws_ec2.yml │ └── inventory_file ├── key │ └── mykey.pem └── roles ├── make_games │ ├── files │ │ └── eula.txt │ └── tasks │ └── main.yml └── make_infra ├── infra_destroy.yml ├── tasks │ └── main.yml └── terraform ├── environment │ ├── instance │ │ ├── aws_ec2.tf │ │ ├── output.tf │ │ └── variables.tf │ ├── main.tf │ ├── network │ │ ├── aws_securitygroup.tf │ │ ├── aws_vpc.tf │ │ ├── output.tf │ │ └── variables.tf │ └── variables.tf ├── main.tf ├── terraform.tfstate ├── terraform.tfstate.backup ├── terraform.tfvars └── variables.tf
リソースの展開について
Ansibleについて文章書きたいって言ってるのに、半分以上がTerrforomなのは... ?
とまぁ、Terraformのご説明を簡単にすると、インフラストラクチャプロバイダなどのリソース設定をコード化できてしまうというものです。
今回は、わざと混合状態で挑むこととしました。(AWSのリソース設定をAnsibleでイチから書くのがめんどくさかったというのは内緒♡)
Terraformは主に、AWSの各リソースのデプロイに利用しています。
ここで、デプロイの準備を解説させていただくと、EC2とVPCの設定を各ディレクトリに配置しております。
実行する上で、./roles/make_infra/terraform/terraform.tfvars
にAWSで取得したIAMユーザのアクセスキーとシークレットキーを入力してください。記入後、下記コマンドを実行。
#編集してください。"./roles/make_infra/terraform/terraform.tfvars" /*provider-settings*/ aws_access_key = "XXXXXXXXXXXXXXXXXXXX" aws_secret_key = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
#Terraformの初期化
terraform init
これで、Terraform側が必要な情報を取得してくれます。
./roles/make_infra/terraform/
下にterraform.tfstate
やterraform.tfstate.backup
、.terraform/
が生成されるかと思います。
Terraform側はこれでOK

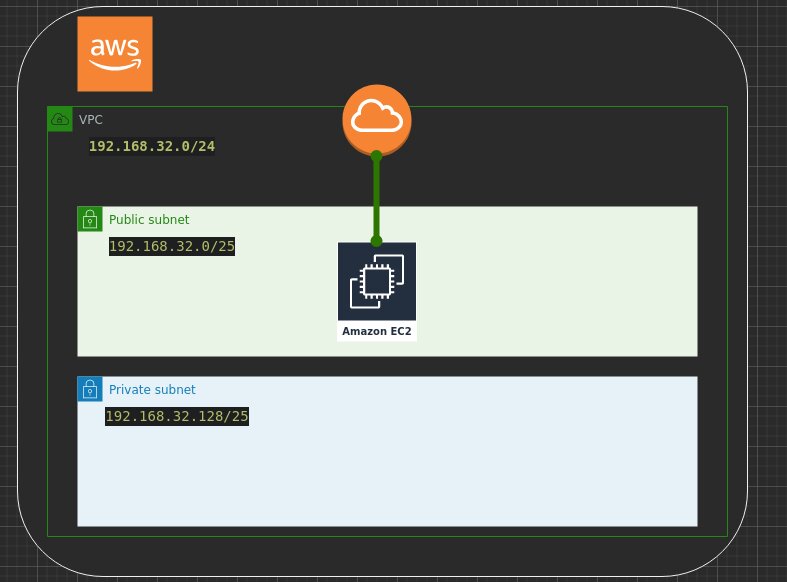

一応、以下のようなリソースを展開する準備ができています。
ネットワークのアドレスやインスタンスのタイプに関しては、./roles/make_infra/terraform/environment/variables.tf
で設定できます。(※プロジェクトネームはいろいろ連動しているので、変えないのが良きかも)
下に、プライベートサブネットができるのは過去に作ったものの流用なので、見逃してください...
#./roles/make_infra/terraform/environment/variables.tf /*aws-name-settings*/ variable "project-name" { default = "minecraft" } /*aws-network-settings*/ variable "vpc-cidr" { default = "192.168.32.0/24" } variable "az" { default = ["ap-northeast-1a", "ap-northeast-1c", "ap-northeast-1d"] } variable "public-subnets" { default = ["192.168.32.0/25"] } variable "private-subnets" { default = ["192.168.32.128/25"] } /*aws-instance-settings*/ variable "ec2-config" { type = map(string) default = { ami = "ami-0ff21806645c5e492" instance_type = "t2.small" instance_key = "mykey" root_ebs_type = "gp2" root_ebs_size = "8" } }
Ansibleの利用
今回、Ansibleはroles
という機能を利用していきたいと思います。
roles
とは、
ロールは、既知のファイル構造に基づいて特定の vars_files、タスク、およびハンドラーを自動的に読み込む方法です。 ロールでコンテンツをグループ化すると、他のユーザーとのロールの共有が容易になります。
参考:ロール - Ansible Documentation
と、言う感じで、つらつらPlaybookを書くよりも、より可読性や共有性をアップできるということですね。
上から、./build_infra.yml
や./build_minecraft.yml
は各ロール内のtasks
のymlファイルを実行しています。
./build_infra.yml
は上のTerraformタスクを実行していて、./build_minecraft.yml
は展開されたインスタンスに対してminecraftの実装をしています。また、ここのversion
変数でminecraftのバージョンを指定できます。
#./build_infra.yml --- - name: build infra hosts: localhost become: false roles: - make_infra
#./build_minecraft.yml --- - name: build minecraft hosts: target become: yes vars: version: "1.12.2" password: passw0rd roles: - make_games
次にinventory
ディレクトリにある、./inventory/aws_ec2.yml
は展開されたEC2インスタンスの情報を引っ張ってきてくれています。
ここで、./inventory/aws_ec2.yml
のaws_access_key_id
とaws_secret_access_key
は、先程Terraformにも記入したアクセスキー、シークレットキーと同じテナントに紐付いているものとなります。(同じもので良いですよ)
./inventory/inventory_file
はインスタンスと22番接続する際に必要な情報が入ってます。
./inventory/inventory_file
内のansible_ssh_private_key_file
は接続に必要なキーペア
の名前を記入の上、ファイルを./key/
ディレクトリ下に保存してください。
#./inventory/aws_ec2.yml plugin: aws_ec2 aws_access_key_id: XXXXXXXXXXXXXXXXXXXX aws_secret_access_key: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx aws_security_token: regions: - ap-northeast-1 strict: no keyed_groups: - key: tags.Name prefix: tag_Name_ separator: "" groups: target: "tags.Name is match('^minecraft-')" compose: ansible_host: global_ip_address
#./inventory/inventory_file [target:vars] ansible_port=22 ansible_user=ec2-user ansible_ssh_private_key_file=key/mykey.pem
一応ここまでで実行はできちゃいますが、もう少しだけ続くんじゃ...
ここでは、各タスクについてご説明します。
./roles/make_infra/tasks/main.yml
は単純にTerraformを実行しています。正直、$ terraform apply
となんら変わりません。ただ、今回はAnsibleからTerraformを実行してみたいという試みなのです。
実際、TerraformからAnsibleを動かすか、AnsibleからTerraformを動かすかは状況に応じて異なるかと思います。
仮に、今回の件が業務に関わるなら、まずAnsibleで要件のOS、必要なパッケージを携えたイメージをローカル環境で作成して、それをAWS 上にAMIとしてアップロードする。(ここまで、自動化)
その後そのAMIを利用してTerraformを実行する。
という手法を取るかと思います。(これも臨機応変)
で、その下に120秒の待機があるのは、単純にインスタンスの起動を「ちょっと待ってー」という意味です。
# ./roles/make_infra/tasks/main.yml - name: make infra terraform terraform: project_path: 'roles/make_infra/terraform' state: present - name: pause pause: seconds: 120 register: result - name: show result debug: var: result
次に、minecraftサーバの実装です。
ファイルは、./roles/make_games/tasks/main.yml
になります。
しかし...まぁ...
ここが一番書くことがないですね...
ちなみに、ローカルからコピーしてきている、eula.txt
というファイルとは、マイクラサーバを起動する際に、「承諾する」という意味のファイルになります。(ファイルは承諾済み)
なので、これを実行したとき、すでに「承諾している」ということですね♡(ゲス顔)
ついでに、マイクラサーバのjarファイルをダウロードしてきているS3には最新版はなかったのであしからず...
# ./roles/make_games/tasks/main.yml - name: install java yum: name=java state=installed - name: install screen yum: name=screen state=installed - name: add a minecraft user user: name=minecraft password={{password}} state=present - name: settings sudo user minecraft lineinfile: "dest=/etc/sudoers backup=yes state=present regexp='^minecraft' line='minecraft ALL=(ALL) NOPASSWD: ALL'" - name: make minecraft directory file: path=/opt/minecraft state=directory owner=minecraft group=minecraft mode=0755 - name: get minecraft get_url: url="https://s3.amazonaws.com/Minecraft.Download/versions/{{version}}/minecraft_server.{{version}}.jar" dest=/opt/minecraft - name: create symbolic link file: src=/opt/minecraft/minecraft_server.{{version}}.jar dest=/opt/minecraft/server.jar state=link - name: copy eula.txt copy: src=eula.txt dest=/opt/minecraft/eula.txt - name: start minecraft shell: /usr/bin/java -Xmx1024M -Xms1024M -jar /opt/minecraft/server.jar nogui & args: chdir: /opt/minecraft/ async: 5 poll: 0
参考というか、ほぼほぼパクリ
実行
実行しちゃう
以上のように実装したコードを実行していきます。
基本的には、プロジェクトのルートディレクトリで実行。
# ./ で実行 ./ $ ansible-playbook build_infra.yml [WARNING]: No inventory was parsed, only implicit localhost is available [WARNING]: provided hosts list is empty, only localhost is available. Note that the implicit localhost does not match 'all' PLAY [build infra] ******************************************************************************************************************************************************************************************************************************************************************* TASK [Gathering Facts] *************************************************************************************************************************************************************************************************************************************************************** ok: [localhost] TASK [make_infra : make infra terraform] ********************************************************************************************************************************************************************************************************************************************* changed: [localhost] TASK [make_infra : pause] ************************************************************************************************************************************************************************************************************************************************************ Pausing for 120 seconds (ctrl+C then 'C' = continue early, ctrl+C then 'A' = abort) ok: [localhost] TASK [make_infra : show result] ****************************************************************************************************************************************************************************************************************************************************** ok: [localhost] => { "result": { "changed": false, "delta": 120, "echo": true, "failed": false, "rc": 0, "start": "2020-09-12 03:54:11.657614", "stderr": "", "stdout": "Paused for 120.0 seconds", "stop": "2020-09-12 03:56:11.657858", "user_input": "" } } PLAY RECAP *************************************************************************************************************************************************************************************************************************************************************************** localhost : ok=4 changed=1 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0

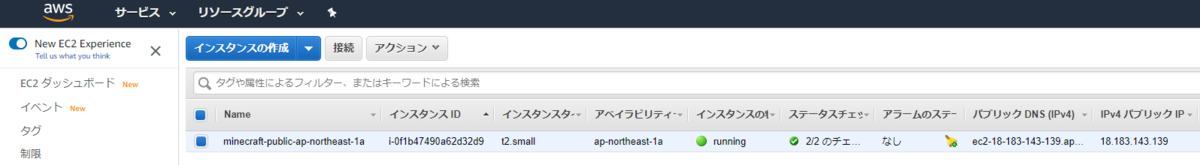

一応、インスタンスの確認。
./ $ ansible-inventory -i inventory --graph @all: |--@aws_ec2: | |--ec2-xx-xx-xx-xx9.ap-northeast-1.compute.amazonaws.com |--@tag_Name_minecraft_public_ap_northeast_1a: | |--ec2-xx-xx-xx-xx9.ap-northeast-1.compute.amazonaws.com |--@target: | |--ec2-xx-xx-xx-xx9.ap-northeast-1.compute.amazonaws.com |--@ungrouped:
インスタンスいますね。
最後に、マイクラサーバのサービス起動まで!
./ $ ansible-playbook -i inventory build_minecraft.yml PLAY [build minecraft] *************************************************************************************************************************************************************************************************************************************************************** TASK [Gathering Facts] *************************************************************************************************************************************************************************************************************************************************************** The authenticity of host 'ec2-xx-xx-xx-xx9.ap-northeast-1.compute.amazonaws.com (xx.xx.xx.xx9)' can't be established. ECDSA key fingerprint is SHA256:4zFNS8SaLRQtm08Hs87FOBqN1XPh2vEi3OPk9AWQDt0. Are you sure you want to continue connecting (yes/no/[fingerprint])? yes [WARNING]: Platform linux on host ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com is using the discovered Python interpreter at /usr/bin/python, but future installation of another Python interpreter could change this. See https://docs.ansible.com/ansible/2.9/reference_appendices/interpreter_discovery.html for more information. ok: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : install java] ***************************************************************************************************************************************************************************************************************************************************** changed: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : install screen] *************************************************************************************************************************************************************************************************************************************************** ok: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : add a minecraft user] ********************************************************************************************************************************************************************************************************************************************* [WARNING]: The input password appears not to have been hashed. The 'password' argument must be encrypted for this module to work properly. changed: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : settings sudo user minecraft] ************************************************************************************************************************************************************************************************************************************* changed: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : make minecraft directory] ***************************************************************************************************************************************************************************************************************************************** changed: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : get minecraft] **************************************************************************************************************************************************************************************************************************************************** changed: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : create symbolic link] ********************************************************************************************************************************************************************************************************************************************* changed: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : copy eula.txt] **************************************************************************************************************************************************************************************************************************************************** changed: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] TASK [make_games : start minecraft] ************************************************************************************************************************************************************************************************************************************************** changed: [ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com] PLAY RECAP *************************************************************************************************************************************************************************************************************************************************************************** ec2-18-183-143-139.ap-northeast-1.compute.amazonaws.com : ok=10 changed=8 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
はい、できました。
実行結果

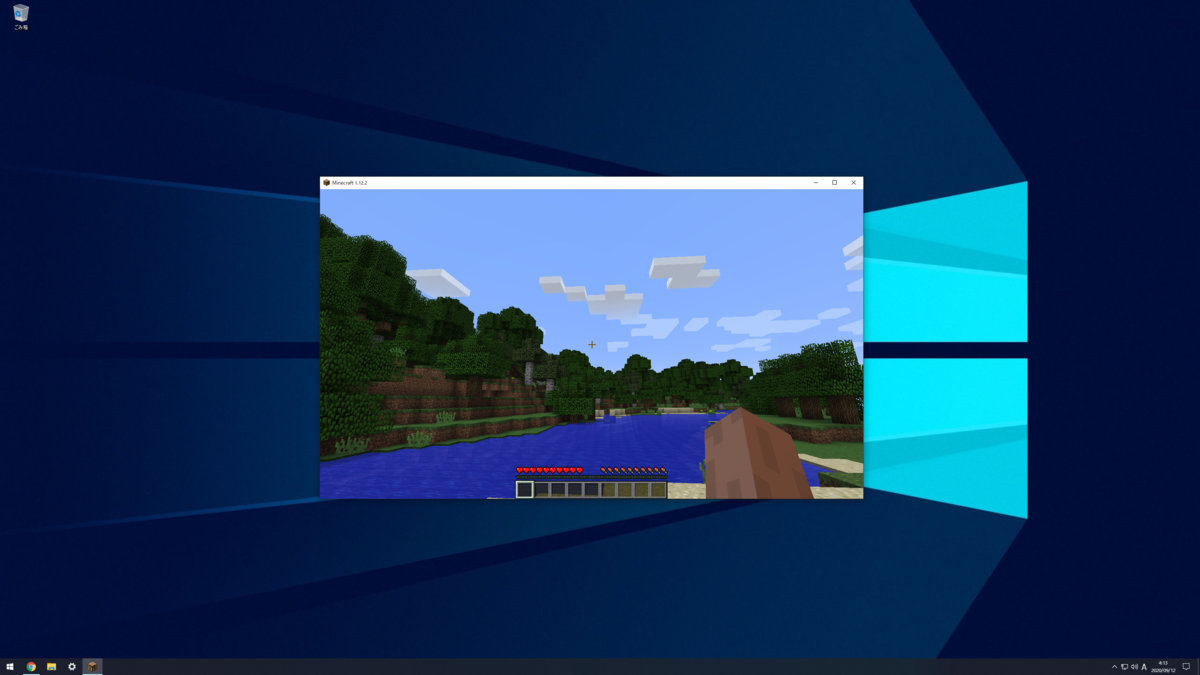

マイクラ接続♡
できたわね!
ちなみに、インスタンスごと葬り去りたいときは...
# /roles/make_infra/
$ ansible-playbook infra_destroy.yml
で、お願いします。
あくまでAnsibleは運用の技術なので、全消しはあまり良くないかなーってことでひっそりと...(思想に支配されすぎてもだめだけどね)
Afterword
はい、お疲れ様です。
無事実装できましたね♪
しかし、まだまだ爪のあまい部分があるかと思います。(warningめっちゃ出てるし...)
これを読んで、おかしいと思うことやよくないわねって思うことは,
My_Linux_Environment [on Arch Linux](GUI編)
Introduction - デスクトップ環境を求めて...
だいぶ日が空きました...
その間に、メイン機のOSを再インストールしてたり、LightDMさんがグラフィックドライバーより早く起動してしまうという現象に悩まされたりしましたが、なんとか元気に生きてます...
今回はいい加減GUI環境の原版を設けようと思いまして...その記録です。
環境
インストール
1.マウスで操作ができるまで
OSのインストール直後と仮定して、文を続けていきます。
まずはrootでログイン後、ユーザーを作りましょう。
# useradd -m -g users -G wheel -s /bin/bash ユーザー名 # passwd ユーザー名
以下で、sudoを使えるようにしてあげて、
# visudo ... ## Uncomment to allow members of group wheel to execute any command %wheel ALL=(ALL) ALL ←先頭の#を削除する。 ...
時刻合わせをしましょう。確認もついでに...
# timedatectl set-ntp true # vim /etc/systemd/timesyncd.conf ... [Time] NTP=ntp1.jst.mfeed.ad.jp ntp2.jst.mfeed.ad.jp ntp3.jst.mfeed.ad.jp FallbackNTP=0.arch.pool.ntp.org 1.arch.pool.ntp.org 2.arch.pool.ntp.org 3.arch.pool.ntp.org ...
systemctl -l status systemd-timesyncd.service ● systemd-timesyncd.service - Network Time Synchronization Loaded: loaded (/usr/lib/systemd/system/systemd-timesyncd.service; enabled; vendor p> Active: active (running) since Wed 2020-09-02 18:25:01 JST; 2h 9min ago Docs: man:systsystemctl -l status systemd-timesyncd.service ● systemd-timesyncd.service - Network Time Synchronization Loaded: loaded (/usr/lib/systemd/system/systemd-timesyncd.service; enabled; vendor p> Active: active (running) since Wed 2020-09-02 18:25:01 JST; 2h 9min ago Docs: man:systemd-timesyncd.service(8) Main PID: 488 (systemd-timesyn) Status: "Initial synchronization to time server 144.76.0.164:123 (2.arch.pool.ntp.or> Tasks: 2 (limit: 38432) Memory: 3.6M CGroup: /system.slice/systemd-timesyncd.service └─488 /usr/lib/systemd/systemd-timesyncd Sep 02 18:25:00 arch-machine systemd[1]: Starting Network Time Synchronization... Sep 02 18:25:01 arch-machine systemd[1]: Started Network Time Synchronization. Sep 02 18:25:29 arch-machine systemd-timesyncd[488]: Initial synchronization to time serv> lines 1-14/14 (END)emd-timesyncd.service(8) Main PID: 488 (systemd-timesyn) Status: "Initial synchronization to time server 144.76.0.164:123 (2.arch.pool.ntp.or> Tasks: 2 (limit: 38432) Memory: 3.6M CGroup: /system.slice/systemd-timesyncd.service └─488 /usr/lib/systemd/systemd-timesyncd Sep 02 18:25:00 arch-machine systemd[1]: Starting Network Time Synchronization... Sep 02 18:25:01 arch-machine systemd[1]: Started Network Time Synchronization. Sep 02 18:25:29 arch-machine systemd-timesyncd[488]: Initial synchronization to time serv> lines 1-14/14 (END)
X Window System
環境を導入しましょう
# pacman -S xorg-server xorg-apps xorg-xinit xorg-xclock xterm xorg-twm
以下でグラフィックドライバーを確認して
lspci | grep VGA
インストールしましょう。(選択しましょう)
# pacman -S xf86-video-intel
だったり
# pacman -S nvidia
だったりします。(人によりけりです)
終わったら、利用するユーザにログインし直してXサービスの確認。
$ startx
で確認後、ネットワーク周りを見とくと良いかも
ここでは深く解説はしませんが、ラップトップだとdhcpcd
は不便が多いのでNetworkManager
に頼ってしまいます。
dhcpcd
とNetworkManager
は衝突するので、どちらかをdisable
にしましょう...
次にi3-wm
をインストールします。
今回は、ウィンドウとウィンドウの間が空いてて、かっちょいいi3-gaps
をチョイス。
一緒にLight Display Manger
も
# pacman -S lightdm lightdm-gtk-greeter lightdm-gtk-greeter-settings
上記は主にLight Display Manger
本体とその周辺ツールのインストール。
で、下記の通りi3-wm(i3-gaps)
と愉快な仲間たちもインストール。
# pacman -S i3-gaps i3status i3blocks
で、その他のツールもいっぺんに!(お好みで♡)
# pacman -S rofi dunst lxappearance ttf-dejavu otf-ipafont ranger xclip imagemagick peek feh xterm
で、ここで上記のツールを簡単に解説
rofi
- マルチスイッチャー(osxのSpotlight
的なもの)dunst
- 通知デーモンlxappearance
- GTK+ アプリケーションのテーマ、アイコン、フォントを設定するためのユーティリティttf-dejavu
- Dejavuフォント(unicodeのラージフォント)otf-ipafont
- 日本語フォントranger
- ターミナル内で利用できる、ファイルマネージャ(ありえん便利)xclip
- クリップボードツールimagemagick
- 画像処理のツール(スクショで使います)peek
- gifで撮影できちゃうスクリーンキャプチャfeh
- 軽量な画像表示ツールxterm
- ターミナル
で、ここで自分が最近ハマったとこ。
なぜか、ディスプレイマネージャを自動起動設定したあと、機器を再起動するとLight-DM
が起動しなくなってしまいました。
くまった...くまった...
これは、グラフィックドライバーより先にLight-DM
が起動してしまうのが原因です。
下記のように/etc/lightdm/lightdm.conf
を編集します
さすが、Archwiki...
[LightDM] logind-check-graphical=true
※参考
ディスプレイマネージャーの自動起動設定をしましょう
# systemctl enable lightdm
以上で、とりあえず終了。
再起動の前に、あとで紹介する設定ファイルをこのタイミングで加えても良いでしょう...
終わったら...reboot
!!
2.設定ファイル
設定ファイルは以下においておきます。 かれこれ、2年ぐらいツギハギしてるかも...
i3-gaps
の設定ファイルは一応晒しておきます...
~/.config/i3/config ---------------------------------------------------------------------------------------------------------------------------- # This file has been auto-generated by i3-config-wizard(1). # It will not be overwritten, so edit it as you like. # # Should you change your keyboard layout some time, delete # this file and re-run i3-config-wizard(1). # # i3 config file (v4) # # Please see https://i3wm.org/docs/userguide.html for a complete reference! set $mod Mod1 # Font for window titles. Will also be used by the bar unless a different font # is used in the bar {} block below. #font pango:monospace 8 font pango:Dejavu Sans,IPAPGothic 9 # This font is widely installed, provides lots of unicode glyphs, right-to-left # text rendering and scalability on retina/hidpi displays (thanks to pango). #font pango:DejaVu Sans Mono 8 # The combination of xss-lock, nm-applet and pactl is a popular choice, so # they are included here as an example. Modify as you see fit. # xss-lock grabs a logind suspend inhibit lock and will use i3lock to lock the # screen before suspend. Use loginctl lock-session to lock your screen. exec --no-startup-id xss-lock --transfer-sleep-lock -- i3lock --nofork # NetworkManager is the most popular way to manage wireless networks on Linux, # and nm-applet is a desktop environment-independent system tray GUI for it. exec --no-startup-id nm-applet # Use pactl to adjust volume in PulseAudio. set $refresh_i3status killall -SIGUSR1 i3status bindsym XF86AudioRaiseVolume exec --no-startup-id pactl set-sink-volume @DEFAULT_SINK@ +10% && $refresh_i3status bindsym XF86AudioLowerVolume exec --no-startup-id pactl set-sink-volume @DEFAULT_SINK@ -10% && $refresh_i3status bindsym XF86AudioMute exec --no-startup-id pactl set-sink-mute @DEFAULT_SINK@ toggle && $refresh_i3status bindsym XF86AudioMicMute exec --no-startup-id pactl set-source-mute @DEFAULT_SOURCE@ toggle && $refresh_i3status # Use Mouse+$mod to drag floating windows to their wanted position floating_modifier $mod # start a terminal #bindsym $mod+Return exec i3-sensible-terminal bindsym $mod+Return exec xterm # kill focused window bindsym $mod+Shift+q kill # start dmenu (a program launcher) #bindsym $mod+d exec dmenu_run bindsym $mod+d exec rofi -show run # There also is the (new) i3-dmenu-desktop which only displays applications # shipping a .desktop file. It is a wrapper around dmenu, so you need that # installed. # bindsym $mod+d exec --no-startup-id i3-dmenu-desktop # change focus bindsym $mod+j focus left bindsym $mod+k focus down bindsym $mod+l focus up bindsym $mod+semicolon focus right # alternatively, you can use the cursor keys: bindsym $mod+Left focus left bindsym $mod+Down focus down bindsym $mod+Up focus up bindsym $mod+Right focus right # move focused window bindsym $mod+Shift+j move left bindsym $mod+Shift+k move down bindsym $mod+Shift+l move up bindsym $mod+Shift+semicolon move right # alternatively, you can use the cursor keys: bindsym $mod+Shift+Left move left bindsym $mod+Shift+Down move down bindsym $mod+Shift+Up move up bindsym $mod+Shift+Right move right # split in horizontal orientation bindsym $mod+h split h # split in vertical orientation bindsym $mod+v split v # enter fullscreen mode for the focused container bindsym $mod+f fullscreen toggle # change container layout (stacked, tabbed, toggle split) bindsym $mod+s layout stacking bindsym $mod+w layout tabbed bindsym $mod+e layout toggle split # toggle tiling / floating bindsym $mod+Shift+space floating toggle # change focus between tiling / floating windows bindsym $mod+space focus mode_toggle # focus the parent container bindsym $mod+a focus parent # focus the child container #bindsym $mod+d focus child # Define names for default workspaces for which we configure key bindings later on. # We use variables to avoid repeating the names in multiple places. set $ws1 "1" set $ws2 "2" set $ws3 "3" set $ws4 "4" set $ws5 "5" set $ws6 "6" set $ws7 "7" set $ws8 "8" set $ws9 "9" set $ws10 "10" # switch to workspace bindsym $mod+1 workspace number $ws1 bindsym $mod+2 workspace number $ws2 bindsym $mod+3 workspace number $ws3 bindsym $mod+4 workspace number $ws4 bindsym $mod+5 workspace number $ws5 bindsym $mod+6 workspace number $ws6 bindsym $mod+7 workspace number $ws7 bindsym $mod+8 workspace number $ws8 bindsym $mod+9 workspace number $ws9 bindsym $mod+0 workspace number $ws10 # move focused container to workspace bindsym $mod+Shift+1 move container to workspace number $ws1 bindsym $mod+Shift+2 move container to workspace number $ws2 bindsym $mod+Shift+3 move container to workspace number $ws3 bindsym $mod+Shift+4 move container to workspace number $ws4 bindsym $mod+Shift+5 move container to workspace number $ws5 bindsym $mod+Shift+6 move container to workspace number $ws6 bindsym $mod+Shift+7 move container to workspace number $ws7 bindsym $mod+Shift+8 move container to workspace number $ws8 bindsym $mod+Shift+9 move container to workspace number $ws9 bindsym $mod+Shift+0 move container to workspace number $ws10 # reload the configuration file bindsym $mod+Shift+c reload # restart i3 inplace (preserves your layout/session, can be used to upgrade i3) bindsym $mod+Shift+r restart # exit i3 (logs you out of your X session) bindsym $mod+Shift+e exec "i3-nagbar -t warning -m 'You pressed the exit shortcut. Do you really want to exit i3? This will end your X session.' -B 'Yes, exit i3' 'i3-msg exit'" # resize window (you can also use the mouse for that) mode "resize" { # These bindings trigger as soon as you enter the resize mode # Pressing left will shrink the window’s width. # Pressing right will grow the window’s width. # Pressing up will shrink the window’s height. # Pressing down will grow the window’s height. bindsym j resize shrink width 10 px or 10 ppt bindsym k resize grow height 10 px or 10 ppt bindsym l resize shrink height 10 px or 10 ppt bindsym semicolon resize grow width 10 px or 10 ppt # same bindings, but for the arrow keys bindsym Left resize shrink width 10 px or 10 ppt bindsym Down resize grow height 10 px or 10 ppt bindsym Up resize shrink height 10 px or 10 ppt bindsym Right resize grow width 10 px or 10 ppt # back to normal: Enter or Escape or $mod+r bindsym Return mode "default" bindsym Escape mode "default" bindsym $mod+r mode "default" } bindsym $mod+r mode "resize" # Start i3bar to display a workspace bar (plus the system information i3status # finds out, if available) #bar { # status_command i3status #} set $background #1d1f21 set $foreground #c5c8c6 set $secondary #5c5c5c set $black #373b41 set $red #cc6666 set $green #b5bd68 set $yellow #f0c674 set $blue #81a2be set $magenta #b294bb set $cyan #8abeb7 set $white #c5c8c6 bar { status_command i3blocks font pango:Dejavu Sans Mono 13px mode dock position top separator_symbol " │ " workspace_buttons yes strip_workspace_numbers yes binding_mode_indicator yes tray_output none tray_padding 0 colors { background $background focused_background $background statusline $blue focused_statusline $blue separator $secondary focused_separator $secondary focused_workspace $foreground $background $foreground active_workspace $background $background $foreground inactive_workspace $background $background $foreground urgent_workspace $foreground $foreground $background binding_mode $foreground $foreground $background } } #have gaps gaps inner 22 #no_border for_window [class="^.*"] border pixel 1 #run_fcitx exec --no-startup-id fcitx #wallpaper exec --no-startup-id feh --bg-scale ~/Pictures/wallpaper.jpg #Dunst exec --no-startup-id dunst # take a screenshot of a screen region and copy it to a clipboard bindsym --release Shift+Print exec "~/.config/i3/scregcp.sh -s ~/Pictures/screenshots/" # take a screenshot of a whole window and copy it to a clipboard bindsym --release Print exec "~/.config/i3/scregcp.sh ~/Pictures/screenshots/" #CapsLock 2 CTL exec --no-startup-id xmodmap ~/.Xmodmap
※ "~/.config/i3/scregcp.sh"はスクショ用のスクリプトになります。

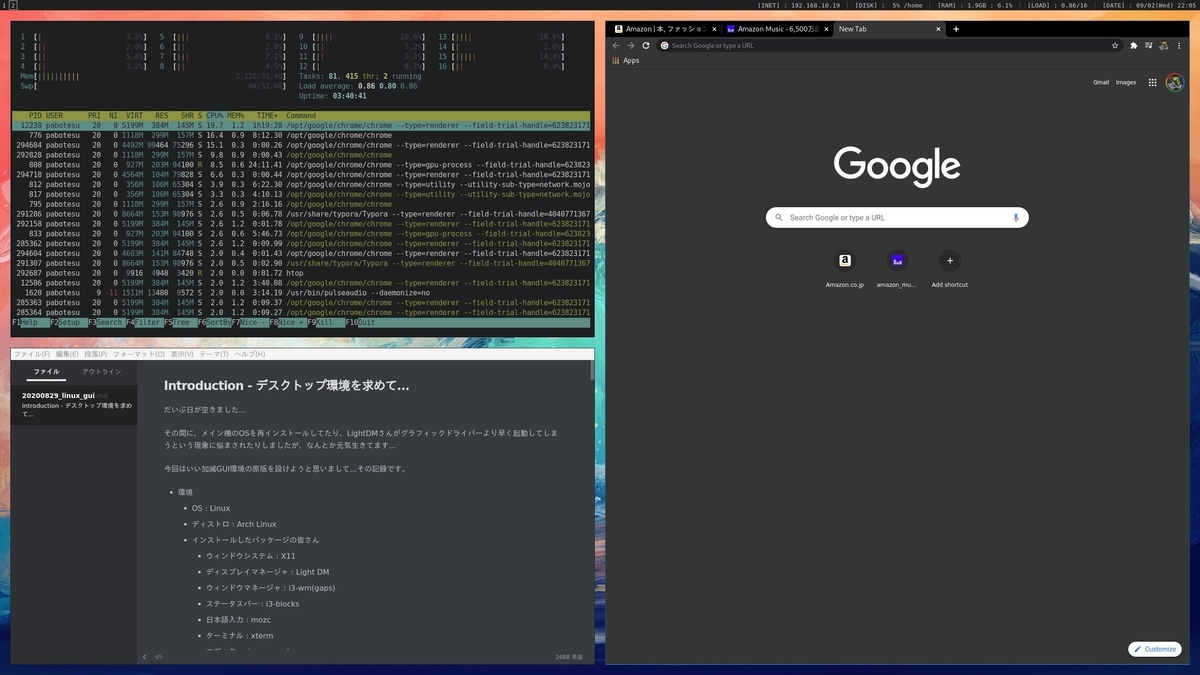

スクショ
Afterword
とまぁ...書いてみましたが、ガバガバですね...
海外の方とかはめちゃんこかっこよくしてたり、おしゃれだったり
泣きそうですね...
My_Linux_Environment [on Arch Linux](インストール編)
Introduction - ほんの出来心だったんです... -
最近、ラップトップのLinux環境がぶっ飛びました...
(自分がpamいじってrootの権限持ってかれたのが原因です...)
最悪です...(僕はクソ野郎)
まぁ...ぶっ飛んだものはしょうがないので、(pamの修正しても良いのですが、めんどくさいので...)
心機一転!!自分の環境を更新しようと思います。
ついでの記録。
ほんとはAnsibleとかでインストールすらも自動化したいですが、自分の力量と根気がゴミクズなので、普通に手動インストール。
環境
あとはご想像におまかせします。
Procedure - ほとんど脳死です... -
1 . インストールメディアの作成、起動
適当にここからjaist.ac.jpなり、ftp.tsukuba.wide.ad.jpのものをダウンロードして、usbに焼きます。
biosのsecurebootはdisableにしておいて、usbぶっ刺して起動!
今回はUEFIモードで設定します。
以下が出力されるので、一番上の「Arch Linux archiso x84_64 UEFI CD」を選択。
Arch Linux archiso x84_64 UEFI CD UEFI Shell x86_64 v1 UEFI Shell x86_64 v2 EFI Default Loader Reboot Into Firmware Interface
コマンドプロンプトが起動するので、
# ls /sys/firmware/
apci dmi efi memmap
で「efi」があることを確認。
UEFIモードのインストールが確認できます。
ここで、jisキーボードを使う場合は以下のコマンドで配列を適用
# loadkeys jp106
あと、インターネットに接続できることを確認してください。
# ping -c3 google.com
2 . パーティションの設定
インストール先のディスクを確認しましょう。
# lsblk | grep -v "rom\|loop\|airoot" NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT sda 8:0 0 512G 0 disk └─sda1 8:1 0 512G 0 part
ぼくは、「sda」ですね
こんなかんじでインストール先ディスク「sdX」を確認してください。
このとき、もしディスクにデータが残ってたら、消してしまいましょう。
。。。(僕の場合はめんどくさいので...)
# sgdisk --zap-all /dev/sdX
ここで今回は他のOSとの共存は考えてないです。
windowsは基本的にデスクトップで使うぐらいなので...(あとめんどい...)
パーティション | フォーマット | 用途 | マウントポイント | 容量 |
---|---|---|---|---|
/dev/sda1 | FAT32 | UEFI System Partition | /boot | 512MB |
/dev/sda2 | swap | swap領域 | 16GB | |
/dev/sda3 | XFS | / | / | 64GB |
/dev/sda4 | XFS | ~/ | ~/ | REST |
swapについててですが今回は脳死でRAM*2です。いろいろ意見はありますが基本的にめんどくさがりなので...
2GB以上だとハイバーネート的にswapがいらないようですね...
こんど検討しますね(追記あるかも...)
あと、フォーマットのXFSですが色んな人からいろんなことを言われますが、基本今回は脳死です...
で、以下のようにパーティション割って
# gdisk /dev/sdX GPT fdisk (gdisk) version 0.8.6 Partition table scan: MBR: not present BSD: not present APM: not present GPT: not present Creating new GPT entries. Command (? for help): o (oで、新しいパーティションテーブルを作る) This option deletes all partitions and creates a new protective MBR. Proceed? (Y/N): y (yで進む) Command (? for help): n (nで、新しいパーティションを作る) Partition number : 1 First sector: (デフォルトで2048から始まるようになっているので、何も入力せずにエンター) Last sector: +512M Hex code or GUID: ef00 (UEFI System partition用のパーティションなのでef00にする) Command (? for help): n Partition number: 2 First sector: (何も入力せずエンター) Last sector: +16G Hex code or GUID: 8200 (swap用は8200) Command (? for help): n Partition number: 3 First sector: (何も入力せずエンター) Last sector: +64G Hex code or GUID: (何も入力せずエンター、デフォルトが8300) Command (? for help): n Partition number: 4 First sector: (何も入力せずエンター) Last sector: (何も入力せずエンターで、残りの領域すべてを使用) Hex code or GUID: (何も入力せずエンター) Command (? for help): w (wで、書き込みに移る) Final checks complete. About to write GPT data. THIS WILL OVERWRITE EXISTING PARTITIONS!! Do you want to proceed?: y (yで、書き込み実行) OK; writing new GUID partition table (GPT) to /dev/sda. The operation has completed successfully.
以下のように、フォーマット。
# mkfs.fat -F32 /dev/sdX1 # mkswap /dev/sdX2 # swapon /dev/sdX2 # mkfs.xfs -m crc=1 /dev/sdX3 # mkfs.xfs -m crc=1 /dev/sdX4
んで、指定のディレクトリをmkdirして、マウント。
# mount /dev/sdX3 /mnt (ルートパーティション(ここではsdX3)を、/mntにマウントする) # mkdir /mnt/home # mount /dev/sdX4 /mnt/home # mkdir /mnt/boot # mount /dev/sdX1 /mnt/boot
3 . 環境設定
以下で、tsukubaのサーバをサーバの優先度を一番上にして、
# vi /etc/pacman.d/mirrorlist
パッケージをインストール※
# pacstrap /mnt linux base base-devel cryptsetup device-mapper dhcpcd e2fsprogs inetutils jfsutils linux-firmware logrotate lvm2 man-db man-pages mdadm nano netctl perl reiserfsprogs s-nail sysfsutils texinfo usbutils vi xfsprogs
※:(baseパッケージ化に伴ってほとんどのパッケージはいらんようです。)
以下のようでよいそうです。便利ですね♡
# pacstrap /mnt base linux linux-firmware
参考:baseがパッケージ化
fstab※を生成して
# genfstab -U -p /mnt >> /mnt/etc/fstab
※:(fstab〜ファイルはディスクパーティションや様々なブロックデバイス、リモートファイルをどうやってファイルシステムにマウントするかを記述します。)
以下で/mntの権限整理して
# arch-chroot /mnt /bin/bash
ロケールの設定しましょう。
# vi /etc/locale.gen
↑はen_US.UTF UTF-8とja_JP.UTF UTF-8のコメントアウトを解除する。
ロケールを更新
# locale-gen
locale.confを生成します。※
# echo LANG=en_US.UTF-8 > /etc/locale.conf # export LANG=en_US.UTF-8
※:X(GUI)と日本語フォントをインストールしたら、ja_JP.UTF-8に変更する。
ここで、キーマップも適用しましょう。
# vi /etc/vconsole.conf
タイムゾーンも設定。
# ln -sf /usr/share/zoneinfo/Asia/Tokyo /etc/localtime # hwclock --systohc --utc
ホストネーム設定しちゃいましょう。
# echo 任意のホストネーム > /etc/hostname
# vi /etc/hosts # # /etc/hosts: static lookup table for host names # # 127.0.0.1 localhost.localdomain localhost 任意のホストネーム ::1 localhost.localdomain localhost 任意のホストネーム # End of file
dhcpcdも自動起動しておいて、
systemctl enable dhcpcd.service
↑はNetworkManagerを衝突するので、役割を終えたら「disable」しましょう。(人の勝手)
ルートのパスワードを設定してしまいます。
# passwd
最新のパッケージがほしいので、パッケージのデータベースを更新。
# pacman -Syy
今回はintelのCPU※を使用してるので、以下で
# pacman -S intel-ucode
パッケージをマイクロコード更新したいのでインストール。
ブートローダをインストールする前準備として、、EFI System Partition を操作するための dosfstools パッケージと、.efiブータブルスタブを作成するためのefibootmgrをインストール※
# pacman -S dosfstools efibootmgr
※:EFI System Partition 〜 FAT32 でフォーマットされた物理パーティション (ディスクのメインのパーティションディスクで、LVM やソフトウェア RAID などとは異なります) でここから UEFI ファームウェアは UEFI ブートローダやアプリケーションを起動します。OS とは独立したパーティションであり、UEFI ブートには必須のパーティションになります。
※:.efiブータブルスタブ 〜 ブートローダではありません。ブートローダとして動作するのはシステムの EFI ファームウェアそれ自体です。efibootmgrは、これを操作するためのツールです。efibootmgr を用いることで、ブートエントリを作成したり順序を変えたり削除したりすることが可能になります。
参考:efibootmgr
ここで、ブートローダをインストール
# pacman -S grub # grub-install --target=x86_64-efi --efi-directory=/boot --bootloader-id=arch_grub --recheck
/boot/EFI/bootにもブータブルスタブを作成しておく。
# mkdir /boot/EFI/boot # cp /boot/EFI/arch_grub/grubx64.efi /boot/EFI/boot/bootx64.efi
grub.cfgを作成
# grub-mkconfig -o /boot/grub/grub.cfg
んで、環境からログアウトして、アンマウント、再起動しましょう。
# exit # umount -R /mnt # reboot
これで、一応Arch Linux自体のインストールは終わり。
再起動後こんな感じになれば、成功です。
Arch Linux バージョン-ARCH (tty1) さっき設定したホスト名 login:
Afterword
とまぁ...やりましたが、書くのがめんどくさい!
どっかのタイミングででSSH入れてコピペでやるのがミスらないですね。
...GUI編に続く...かも...!
参考:
「はい、僕はゴミクズです。」
始まりたい...
これがすべての根源。 スタート。
